Outokumpu Plate Distributors in India and Ultra Alloy 825 Coil

Table Of Content

Trusted Supplier Of Outokumpu Coil With Various Grades in Mumbai

Outokumpu Plates Specification

Stock List Of Outokumpu Plates

Ultra Alloy 825 Coil Application

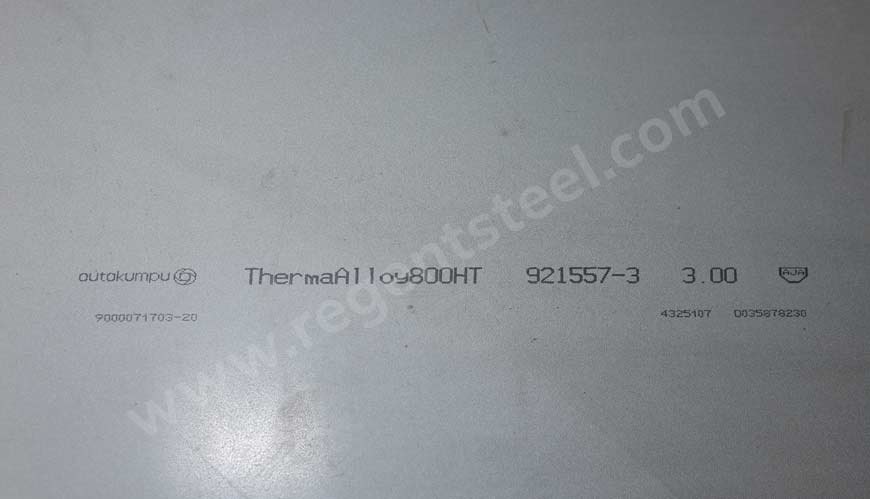

Therma Alloy 800 Sheet Finish

Ultra 254 SMO® Plate Standards and Approvals

Outokumpu Coil Price

For Outokumpu Steel Price Per Kg in India Please Click Here Outokumpu Price List

Dimensions Of Outokumpu Hot Rolled Coil

Metric Dimensions
Surface finish	Width (mm)	Thickness (mm)
heat treated, 1D - Hot rolled, pickled	max. 2032	2.4 - 12.7

Imperial Dimension
Surface finish	Width (in)	Thickness (in)
heat treated, 1 - Hot rolled, pickled	max. 72	.1000 - .3750

Outokumpu Hot Rolled Plate Services

SERVICES*
SAWING
	Maximum length	Maximum width	Maximum thickness
	6,250 mm	2,500 mm	300 mm
LASER EN ISO 9013 (Din 2310 (5)-IIL)
	Maximum length	Maximum width	Maximum thickness
6 kW	6.000 mm	2.000 mm	25 mm
4 kW	6.500 mm	2.500 mm	15 mm
ABRASIVE WATER JET CUTTING
	Maximum length	Maximum width	Maximum thickness
	13,200 mm	4,100 mm	150 mm
LEVELER
	Maximum length	Maximum width	Maximum thickness
	2,000 mm	1,450 mm	35 mm
Other dimensions on request.
PLASMA EN ISO 9013 (Din 2310)
	Maximum length	Maximum width	Maximum thickness
Dry	18,000 mm	to 6,500 mm	150 mm
Under water	16,000 mm	6,500 mm	70 mm
Possibility of welding edge preparation
SHEAR
	Maximum length
2 to 35 mm	6,500 mm
BENDING 2.300 ton
	Maximum length
	13,000 mm
PLASMA AND SUBMERGED ARC WELDING (SAW)
	Maximum length
pipes, Profiles, submerged arc welding	13,500 milimeter
MACHINING Turning/drilling/milling
	Maximum width
	1,450 mm
Other dimensions on request.
In Cooperation With Our Rolling Mill
Welding edge preparation Milling 30/45/50
Grinding
* All information is based on the drawing and dimensions.

Outokumpu Cold Rolled Plate Dimensions

Dimensions Metric
Finish Type	Width in mm	Thickness in mm
Brushed, Polished	maximum 1524	0.5 to 4.0
2D - Cold Rolled, Heat Treated and Pickled	maximum 1524	0.4 to 6.35
2R - Cold Rolled and Bright Annealed	maximum 1524	0.25 to 3.5
2E - Cold Rolled, Heat Treated and Mechanically Descaled	maximum 2032	0.4 to 8.0
2B - Skin Passed, Pickled, Heat Treated and Cold Rolled,	maximum 2032	0.25 to 8.0
2H - Hardened Work	maximum 1524	0.4 to 6.35

Dimensions Imperial
Finish Type	Width in inch	Gauge in inch
Mexinox Temper Rolled	maximum 48	13 to 29
2D - Heat Treated, Cold Rolled and Pickled	maximum 60	12 to 24
2B - Cold Rolled, Pickled, Heat Treated and Skin Passed	maximum 72*	10 to 24
BA- Mexinox	maximum 48	18 to 28
(not brushed) Polished	maximum 60	11 to 24

Outokumpu Precision Strip Dimensions

Imperial Dimensions
Surface finish	Width (in)	Thickness (in)
1 - Hot Rolled, Pickled and Heat Treated	max. 72	.1000 - .3750

Metric Dimensions
Surface finish	Width (mm)	Thickness (mm)
1D - Hot Rolled, Heat Treated and Pickled	max. 2032	2.4 - 12.7

Why Should You Buy From Regent Steel?

Distributor of Renowned Mills of Nickel Alloys in Europe and USA.
Experience of 2 Decades as a Supplier of High Temperature Alloys in Dubai ( UAE), Saudi Arabia and Africa.
Largest Stockist of Nickel Alloy Flat Products in Mumbai
Ready Stock of Sheets, Coils, Strips and Bars in Over 50 Sizes at Al Jubail, Abu Dhabi, Muscat and South Africa
Facility of Cut to Size at No Extra Cost.
Weekly Delivery to Nigeria, Qatar, Dammam, Sharjah and Singapore
NACE Certified Material at Dealer Price.
Resale Price for Traders, Wholesalers, Importers and Stockholders in Mena Countries
Data Sheets and MTC Along With Quote.
Free Sample, Latest Price List on Request
Renowned Supplier in Heat Exchangers, Instrumentation, and Oil and Gas Industry
Compare Weight Chart and Price Per Kg in China and India.
